Introduction:
When it comes to installing electrical systems, the choice between cable trays and conduits often leaves many project managers scratching their heads. Both options have their pros and cons, but understanding which one is right for your specific project can make all the difference in terms of cost, safety, and efficiency.

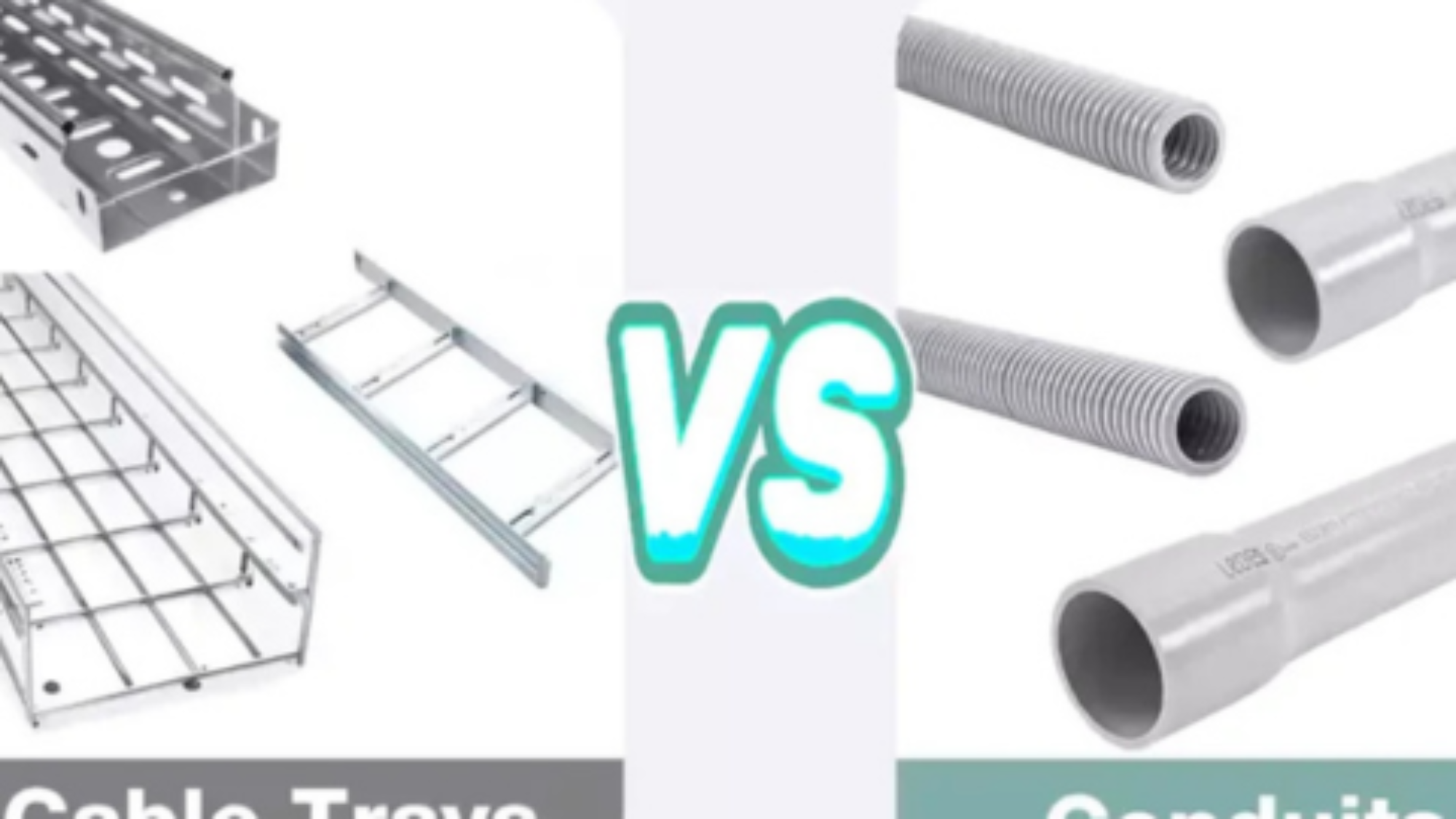

Understanding Cable Trays and Conduits
- Cable Trays
Cable trays are an open system used to support insulated electrical cables. They are often made from materials like metal or fiberglass and are designed to hold multiple cables at once, typically in industrial or large-scale commercial setups. Because cable trays are open, they allow for better airflow, which helps to prevent the cables from overheating. They’re also easy to access, which is ideal for maintenance and future cable upgrades.
- Conduits
Conduits, on the other hand, are enclosed systems that completely encase the electrical cables. Usually made from materials like PVC or metal, conduits provide robust protection from external elements such as water, dust, and even physical damage. However, because conduits fully enclose the cables, they require more effort during installation and make future access for repairs or upgrades a bit more complex.
Key Differences Between Cable Trays and Conduits
Now that we have a basic understanding, let’s explore the key differences between the two systems in terms of structure, installation, and functionality.
- Structure and Design:
The most noticeable difference is how each system holds cables. Cable trays have an open design, which means the cables rest on a ladder-like structure, making them visible and easy to access. Conduits, by contrast, are fully enclosed, providing more protection from external elements. While the open design of cable trays allows for easy adjustments, conduits are better suited for areas that demand extra durability and safety.
- Ease of Installation:
One of the main advantages of cable trays is that they’re quicker and easier to install. Since they don’t need to be threaded through a tube, you can simply lay the cables on the tray. This makes them a popular choice for large-scale projects where efficiency matters. Conduits, however, take longer to install. The cables must be threaded through the conduit, which can be a time-consuming process, especially for complex installations or long cable runs.
- Access and Maintenance:
Because cable trays are open, they make future access much simpler. Need to add new cables or perform maintenance? No problem. You can easily access the cables without having to remove any enclosures. Conduits, however, are less flexible in this regard. To access the cables, you may need to disconnect sections of the conduit or even dismantle parts of the system. This can complicate repairs or upgrades down the line.
- Protection from External Elements:
When it comes to protection, conduits take the lead. The enclosed structure shields cables from dust, water, and other external hazards, making them ideal for outdoor projects or areas where exposure to moisture or chemicals is a concern. Cable trays, being open, don’t offer the same level of protection. While they’re fine for indoor or controlled environments, they’re not suitable for situations where the cables could be exposed to harsh conditions.
- Cost Considerations:
Cable trays are generally more cost-effective, especially for large installations. They use fewer materials, and the installation process is quicker, which can save on labour costs. Conduits, while providing more protection, tend to be more expensive. Not only do you need more material to fully enclose the cables, but the installation process is also more labour-intensive, driving up costs.
- Heat Dissipation:
Heat can be a significant issue in electrical systems, especially in high-voltage setups. The open design of cable trays allows heat to dissipate easily, making them a better option for projects where overheating could be a concern. Conduits, being enclosed, trap heat inside, which could be a potential issue in high-energy applications unless other cooling measures are in place.
When Should You Choose Cable Trays?
Cable trays are an excellent choice when your project requires:
- Easy access for future modifications – If you expect to add, remove, or rearrange cables frequently, the open design of cable trays is a major advantage.
- Lower overall cost – Since they are easier to install and require fewer materials, cable trays are often the more affordable option, particularly for larger projects.
- Heat dissipation – In setups where heat build-up could be an issue, cable trays help by allowing air to flow freely around the cables, keeping things cooler.
- Indoor environments – Cable trays are well-suited for indoor installations where environmental hazards are minimal, such as data centers or industrial plants.
When Are Conduits the Better Choice?
On the flip side, conduits are your best bet in situations where:
- Maximum protection is needed. If the cables are going to be exposed to water, dust, or chemicals, conduits provide superior protection. This makes them ideal for outdoor projects or harsh environments, like factories and tunnels.
- Aesthetic concerns are a priority. In commercial or residential buildings where you want a clean, polished look, conduits hide the cables and offer a neater appearance.
- Local code requirements demand it. In some areas or industries, electrical codes might require the use of conduits for safety reasons, especially in high-risk environments.
- Security is critical. For areas where tampering or accidental damage is a concern, conduits provide that extra layer of security by completely enclosing the cables.
Wrapping It Up:
At the end of the day, the choice between cable trays and conduits comes down to the specific needs of your project. If you are looking for a budget-friendly, flexible solution that allows for easy cable access and heat dissipation, cable trays are likely your best bet. However, if your project demands maximum protection, durability, and adherence to strict safety codes, conduits are the way to go. Additionally, consider the installation environment and potential future expansion when making your decision.
