When project teams evaluate cable tray manufacturers, perforated cable trays are almost always the first product they specify.
Perforated trays support the widest range of cable types and fit more installation environments than any other tray category.
But a perforated cable tray alone is only half the solution.
Without a complete and matched cable tray accessories range, every direction change, junction, and level transition becomes a site problem.
Greatweld Engineering manufactures perforated cable trays and a comprehensive accessories range from our facility in Alandi, Pune.
This guide covers our full product specifications, the accessories range, available materials and finishes, and the applications we serve.
What Is a Perforated Cable Tray

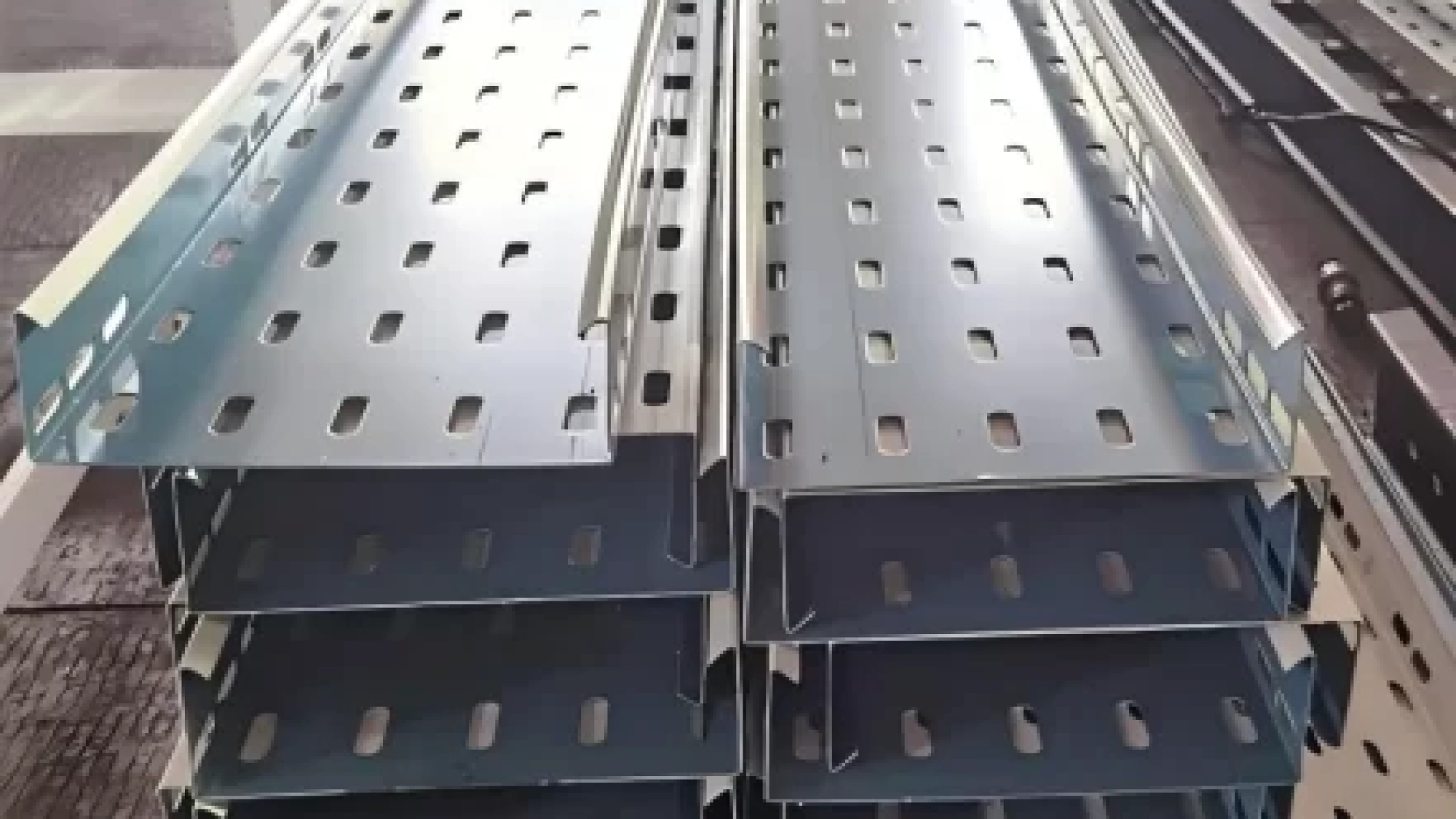

A perforated cable tray is a single-piece cable support channel formed from a steel sheet with regularly punched holes across the base.
The solid base provides full underside support to every cable resting on it.
The punched perforations allow air to circulate through the tray and assist heat dissipation from the cable bundle above.
This combination of support and partial ventilation positions the perforated cable tray between an open ladder tray and a fully enclosed raceway in terms of protection and airflow.
The result is the most versatile tray type available to specifiers across commercial, institutional, and light industrial projects.
Greatweld Engineering manufactures perforated cable trays in mild steel and aluminium, compliant with IEC 61537:2023.
Why Perforated Cable Trays Are the Most Widely Specified Tray Type
Among all cable tray manufacturers active in India, perforated trays consistently account for the largest share of supply.
The reason is their balance of features across the critical specification criteria.
They provide more cable containment and dust protection than an open ladder tray.
They allow more ventilation than a fully enclosed raceway trunking system.
The flat solid base makes cable support more predictable at irregular laying points along a tray run.
In Indian projects, perforated trays are the default choice for IT campuses, hospitals, manufacturing plants, commercial buildings, and educational institutions.
Perforated Cable Tray Specifications at Greatweld Engineering
Width range from 150 mm to 1000 mm to accommodate cable loads from single low-voltage runs to high-density multi-cable bundles.
Side wall height from 40 mm to 150 mm depending on the required cable fill depth.
Sheet thickness from 1.2 mm to 3.0 mm depending on the span and load rating required.
Materials available are mild steel and aluminium.
Finish options include hot-dip galvanised, pre-galvanised, and powder-coated in the standard range.
Standard section lengths are 2.4 m and 3.0 m. Custom lengths are available on request.
Custom widths, heights, and thicknesses are also available for project-specific requirements.
Types of Perforated Tray Configurations
Standard Perforated Trays
Standard perforated trays have a flat base with evenly punched holes and flanged side walls.
They are the most commonly specified configuration across commercial and institutional buildings.
The flanged side wall provides rigidity to the tray section and prevents cables from falling sideways off the tray edge.
Return Flange Perforated Trays
Return flange perforated trays have an inward-turned lip at the top of the side wall.
This return flange increases section rigidity and allows covers to clip directly onto the tray where cable protection is required.
They are used in areas with higher dust or debris exposure where partial cover provides additional cable protection.
Deep Perforated Trays
Deep perforated trays have a taller side wall to accommodate higher cable fill density on main distribution routes.
The deeper section allows the separation distance between power and data cables to be maintained within a single shared tray run.
They are specified where multiple cable types share one route but must remain separated for EMI and safety reasons.
Cable Tray Accessories: The Complete Range
A complete perforated cable tray installation requires a full set of matched cable tray accessories for direction changes, junctions, and connections.
Greatweld Engineering supplies a comprehensive cable tray accessories range compatible with all standard tray widths in our product line.
All accessories are manufactured in the same material and finish as the primary tray sections to ensure full compatibility throughout the installation.
Horizontal Bends
Horizontal bends change the direction of a cable tray run along a flat plane.
They are manufactured in 30-degree, 45-degree, and 90-degree angles to match site layout requirements.
Horizontal bends maintain continuous cable support through the direction change without breaking the tray structure at corners.
Vertical Bends and Risers
Vertical bends allow the tray to change height between floor levels or route over structural beams and ceiling obstructions.
Inside and outside vertical riser fittings handle upward and downward direction changes on the same tray run.
They are essential for routing cables between equipment rooms and cable floors at different structural levels.
Tees and Crosses
Tee fittings branch a cable tray route in one additional direction from the main tray run.
Cross fittings create four-way junction points where two cable routes intersect on the same level.
Both types are available in widths matching the primary tray and can be mixed within a single cable route.
Reducers
Reducers transition between two different tray widths within the same cable route.
They are used where a main distribution tray branches into a narrower secondary route serving fewer cables.
Greatweld Engineering fabricates reducers to connect any two standard tray widths in our range.
Coupler Plates and Splice Connectors
Coupler plates join two perforated cable tray sections end-to-end on a straight cable run.
They maintain alignment between adjacent sections and provide a rigid joint that prevents deflection at the connection point.
Splice connector hardware is supplied in matching material and finish to maintain consistency throughout the installation.
Support and Suspension Hardware
Wall brackets, channel support brackets, and trapeze hangers mount the tray to the building structure at the required support intervals.
Greatweld Engineering supplies support hardware sized for all standard tray widths and designed for both wall-fixed and overhead suspended mounting.
Support spacing must follow the load-span chart provided by the cable tray manufacturers for the specific tray width and cable load.
Materials and Finishes
Hot-dip galvanised mild steel is the standard specification for perforated cable trays and cable tray accessories in industrial and outdoor installations.
Pre-galvanised mild steel is used in dry, indoor, low-humidity commercial environments where the exposure class is low.
Powder-coated finish in standard RAL colours is available where colour coding or commercial aesthetics are required.
Aluminium trays are available for applications where material weight is a constraint or where mild steel is not appropriate.
Applications
Commercial office buildings and IT campuses use perforated cable trays for structured power, data, and low-voltage cable management across all floors.
Hospitals and healthcare facilities specify perforated trays in clinical and technical areas where cables are dense and regular maintenance access is required.
Manufacturing plants and industrial facilities use perforated trays in plant rooms, control buildings, and production floor cable routes.
Infrastructure projects including airports, railways, and metro systems specify perforated trays with hot-dip galvanised finish for long-term cable route durability.
Procuring both the tray and all cable tray accessories from a single manufacturer ensures dimensional compatibility and a consistent finish throughout the installation.
Conclusion
A well-designed cable management system depends as much on the quality of the accessories as on the quality of the primary tray sections.
Specifying perforated cable trays and cable tray accessories from a single capable manufacturer eliminates compatibility risks and simplifies procurement.
Greatweld Engineering manufactures a complete perforated cable tray and accessories range for commercial, industrial, and infrastructure projects across India.
Contact Greatweld Engineering with your cable schedule, required tray widths, and site layout to receive a product recommendation and project quotation.
